Product Dimensions 9"h x 35.88"w x 19.25"d

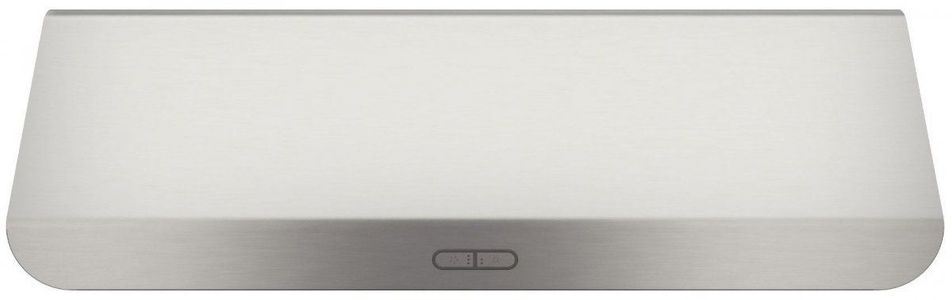

Broan brings you Spire, an exciting new shape in a pro-style hood. The new ENERGY STAR® certified design incorporates modern features like the quiet Captur™ system and LED lighting.Read More
Model replaced EPLEC136SS
The Captur™ system's advanced blower design features a centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at a powerful 600 CFM
Forward placement and smooth-flow blower wheel design ensure quiet, <0.3 Sones operation at normal speed
Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
Dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow. The filter clean reminder ensures they will always maintain a high level of capture
EZ1 brackets enable single-person installation in less than half the time of traditional methods
ADA compliant, remote operation is possible using a standard UL approved wall switch
Bright, two-level ENERGY STAR® LED modules – supported by a 3-year warranty – illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
General Specs | |
Width (in.) | 35.88 |
Height (in.) | 9 |
Duct Size (in.) | 7 |
Depth (in.) | 19.25 |
Collection | Elite Spire Series |
Color | Stainless Steel |
Manufacturer Warranty | 1 Year / 3 Year LED Modules |
Color Finish Name | Stainless Steel |
Range Hood Type | Under Cabinet |
ADA Compliant | Yes |
ENERGY STAR Certified | No |
Outdoor Approved | No |
Appliance Fit Width (in.) | 36 |
Smart Compatible | No |
Maximum CFM | 600 |
Grease Filter Type | Baffle |
Voltage | 120 |
Amp | 1.9 |
Frequency | 60 |
Range Hood Features | Ductless Capable |
Overview | |
Control type | 3-speed Capacitive Touch |
Filter Clean Reminder | Yes |
Lighting | 2-level ENERGY STAR® LED (included) |
Grease Filters | Hybrid Baffle (Qty. 2) |
Installation Hardware | EZ1 Brackets |
Recirculation | Non-ducted filters sold separately |
3¼ in. x 10 in. Damper/Duct Connector | Included |
